Non-Asbestos Gaskets

When equipment built before the asbestos transition needs replacement gaskets, the modern specification is compressed non-asbestos fiber (CNAF). Cannon Gasket cuts custom non-asbestos gaskets to your existing flange drawings or to samples of legacy gaskets pulled from service.

Durometer
0.016" to 0.250" thickness
Highlight
Asbestos-free, safe alternative
Request a Quote909.355.1547

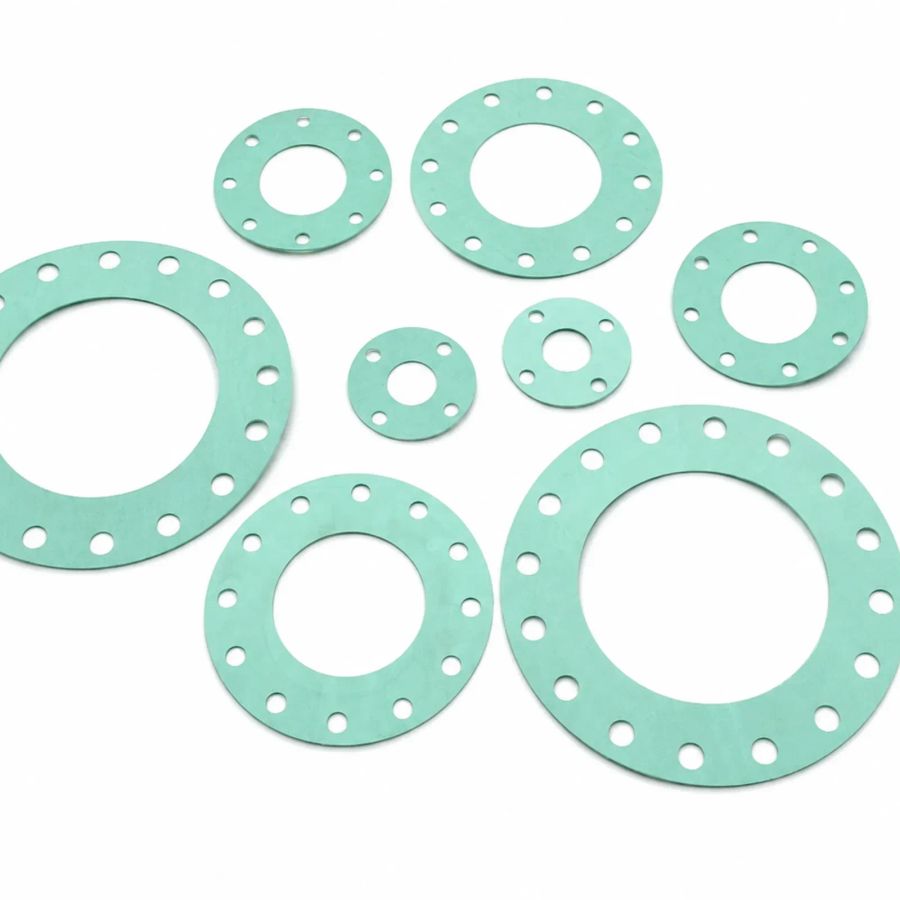

Custom Non-Asbestos gaskets from Cannon Gasket
Get pricing

Request a quote for Non-Asbestos gaskets.

Properties of Non-Asbestos gaskets

Cannon Gasket cuts Non-Asbestos gaskets to your drawing in durometer and thickness specifications of 0.016" to 0.250" thickness. Strong resistance to heat, pressure, and a broad range of industrial chemicals including oils, fuels, steam, and dilute acids/bases.

Non-Asbestos tolerances and customization

Standard dimensional tolerances on Non-Asbestos gaskets land around ±0.010" to ±0.015" on OD and ID, depending on material durometer and thickness. Tighter tolerances are available on selected grades. Cannon Gasket cuts Non-Asbestos to custom profiles in-house and matches lead times to your production volume. PSA backing, pad printing, custom packaging, and kitting are all on the menu when you need them.

How Non-Asbestos Sheet Performs

- Aramid or synthetic fibers bound by elastomer — replaces asbestos in pressure, temperature, and chemical compatibility. - Pressure capability into the hundreds of psi (grade dependent). - Available in grades engineered for steam, hydrocarbons, water, and chemical service.

Where Non-Asbestos Gaskets Are Specified

Replacement gasket programs for legacy industrial equipment, refinery flanges, steam plant retrofits, marine engine room gaskets, and any environment that previously specified asbestos sheet.

Reference Samples

For retrofit programs, send a sample of the legacy gasket. We will identify the original specification and recommend the closest modern non-asbestos equivalent.

Cutting Methods

Die-cut, Flash cut and steel-rule-cut.

Request a QuoteNon-Asbestos GasketsDownload PDFPrint-ready spec sheetClaude SkillExpert prompt .md
Key Properties
  • Thickness
  • Asbestos-free, safe alternative
  • Excellent mechanical strength
  • Low creep relaxation
  • Broad chemical resistance
Engineering Tools
Applications
Ready to quote?
Submit your drawing or specifications and we'll respond with pricing and lead times.
Request a Quote
or call 909.355.1547
Keep Exploring

Related products, materials & reading.

Material
Interface Gaskets
Custom die-cut Interface Performance Materials compressed-fiber gaskets.
Material
Buna-N / Nitrile Gaskets
Custom die-cut Buna-N nitrile rubber gaskets for oil, fuel, and petroleum sealing.
Product
Rubber Washers
Same elastomers as precision die-cut washers, any OD / ID / thickness.
Article
Ultimate Guide to Industrial Gaskets
Materials, types, and specification guide for industrial sealing applications.
Frequently Asked Questions

Common Non-Asbestos questions.

Are you ISO 9001 certified?
Yes, ISO 9001:2015 certified. Documented quality management covers incoming material verification, in-process inspection, calibrated measurement, final inspection, non-conformance handling, corrective action, and full lot traceability. AS9100-ready for aerospace, with MIL-spec and FDA 21 CFR 177.2600 / USP Class VI grades available on request.
Can you cut custom gasket profiles?
Yes. Custom steel-rule and rotary tooling is built in-house from your drawing or DXF. Complex profiles, multiple through-cuts, tight bolt patterns, and irregular perimeters are all standard work.
Can you supply PSA-backed gaskets?
Yes. Pressure-sensitive adhesive backing is a standard option on most rubber and fiber gasketing, with either permanent or removable liners. Kiss-cut on liner and through-cut both supported on flatbed and rotary presses.
What tolerances can you hold on gasket dimensions?
Standard die-cut tolerance is ±0.010 to ±0.015 inch on OD and ID, depending on material durometer and thickness. Tighter tolerances are available on select grades and thicknesses. Ask if your drawing specifies something tighter and we will confirm feasibility during the quote.
Which gasket material is right for my application?
Start with temperature range, fluid contact, and regulatory requirements. Buna-N is the default for oil and fuel. EPDM for weather, water, and steam. Silicone for extreme temperature and FDA grades. Viton for aggressive chemicals. Our gasket material selection guide walks through the decision framework.
How fast do you return a quote?
Most RFQs come back within one business day. Simple profile updates to an existing tool quote same-day. Send a drawing, DXF, or competing part number and our engineering team reviews material, tolerance, and volume before pricing.
What is the minimum order quantity?
Minimums depend on the part and material. We cut prototype and first-article quantities for engineering evaluation, then scale up to production volumes from the same tooling. For high-volume programs we run JIT, VMI, and Kanban replenishment out of Fontana, California.
What should I send with an RFQ?
Ideal: a drawing or DXF, material spec (or compound family), estimated annual volume, and any regulatory callouts (FDA, USP Class VI, AS9100, MIL-spec). If you only have a sample or a part number from a competing supplier, send that and we will reverse-engineer the spec before quoting.
What are typical lead times?
Prototype and first-article parts usually ship in 5-10 business days. Production runs from existing tooling are 2-3 weeks depending on volume and material lead time. Rush and expedite options available on a case-by-case basis.
Need custom Non-Asbestos gaskets?
From prototype to production, any shape, any volume.
