Polyisoprene Lathe Cut Washers

Polyisoprene lathe cut washers provide the mechanical properties of natural rubber with the chemistry consistency of a synthetic, in thicker square-walled formats. Cannon Gasket lathe cuts polyisoprene for medical, food, pharmaceutical, and latex-free applications.

Durometer
30A to 80A
Highlight
Latex-free
Request a Quote909.355.1547

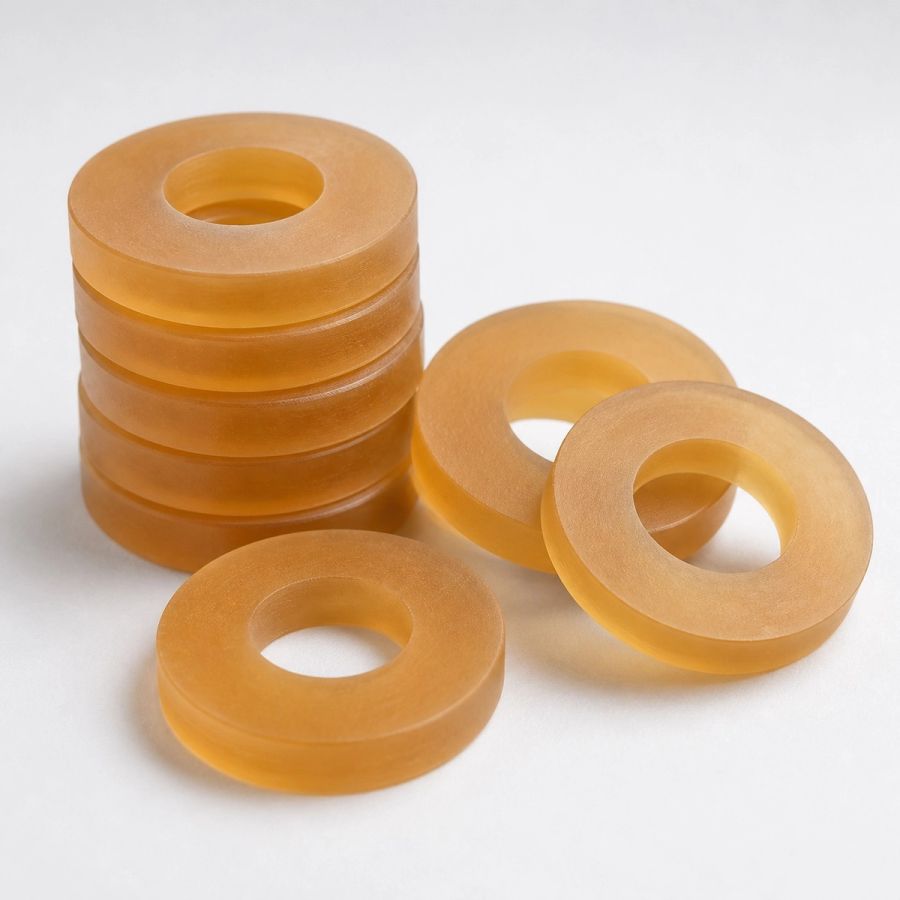

Custom Polyisoprene lathe-cut washers from Cannon Gasket
Get pricing

Request a quote for Polyisoprene lathe cut washers.

Properties of Polyisoprene lathe cut washers

Cannon Gasket cuts Polyisoprene lathe cut washers to your specifications in durometers ranging from 30A to 80A Shore hardness. Good resistance to water, dilute acids, and alcohols. Latex-free.

Polyisoprene tolerances and customization

Standard dimensional tolerances on Polyisoprene lathe cut washers land around ±0.010" to ±0.015" on OD and ID, depending on material durometer and thickness. Tighter tolerances are available on selected grades. Cannon Gasket cuts Polyisoprene to custom profiles in-house and matches lead times to your production volume. PSA backing, pad printing, custom packaging, and kitting are all on the menu when you need them.

Material Notes

- High resilience, good tear strength, low compression set. - Latex-protein-free formulations available. - FDA and medical-grade compounds available. - Service temperature -60°F to +200°F.

Manufacturing, finishing & stocking

Precision & tooling: Capable of holding tolerances as tight as ±.001" on critical dimensions when required, beyond the ±0.010" to ±0.015" standard. Short- and long-run capabilities, with an extensive in-house tooling inventory for rapid turnaround.

Clean room: Cannon Gasket offers clean-environment stamping for medical, FDA, electronic, and scientific applications where a controlled level of particulate is required, with capabilities to meet ISO Class 10,000.

Stocking agreements: Blanket orders, VMI (vendor-managed inventory), JIT (just-in-time), and Kanban replenishment programs.

Pad printing: Pad print your part number, identification marking, or company name in a range of ink colors. Marking per customer specifications or MIL-STD-130.

Packaging: Parts are bagged and tagged in specified quantities and labeled with P/N or any required information. Capability to meet specific packaging and labeling requirements.

Request a QuotePolyisoprene Lathe Cut WashersDownload PDFPrint-ready spec sheetClaude SkillExpert prompt .md
Key Properties
  • Durometer: 30–80 Shore A
  • Latex-free
  • Excellent tensile strength
  • Medical & food grade
Engineering Tools
Applications
Ready to quote?
Submit your drawing or specifications and we'll respond with pricing and lead times.
Request a Quote
or call 909.355.1547
Keep Exploring

Related products, materials & reading.

Material
Buna-N / Nitrile Lathe Cut Washers
Buna-N nitrile (NBR) lathe cut washers with oil, fuel, and grease resistance.
Material
EPDM Lathe Cut Washers
EPDM lathe cut washers with superior weather, ozone, and UV resistance.
Product
O-Rings
Standard and custom O-rings in every major elastomer family.
Article
Lathe Cut vs O-Ring, Here's the Deal
When a lathe-cut seal outperforms a molded O-ring, and vice versa.
Frequently Asked Questions

Common Polyisoprene questions.

Are you ISO 9001 certified?
Yes, ISO 9001:2015 certified. Documented quality management covers incoming material verification, in-process inspection, calibrated measurement, final inspection, non-conformance handling, corrective action, and full lot traceability. AS9100-ready for aerospace, with MIL-spec and FDA 21 CFR 177.2600 / USP Class VI grades available on request.
What is a lathe-cut O-ring?
A lathe-cut seal is turned from tube stock instead of molded. Square cross-section instead of round. Lower tooling cost and often better dimensional stability than molded O-rings at low-to-mid volume. See /lathe-cut-washers/ for details.
What tolerances can you hold on lathe-cut parts?
Standard OD/ID tolerance is ±0.010 inch to ±0.015 inch, with thickness held to ±0.002 inch. We can hold ±0.005 inch on ID and OD on select compounds, and as tight as ±.001 inch on critical dimensions, with first-article inspection.
When should I specify a lathe-cut washer instead of a molded O-ring?
Lower tooling cost on short runs, tighter dimensional control on thickness, and flat sealing faces that help on grooved or machined seats. Molded O-rings are still cheaper at high volume in a standard AS568 size.
Which compounds can you lathe-cut?
Any material supplied as extruded tube: Buna-N, EPDM, Silicone, Viton, Neoprene, SBR, and specialty compounds like Fluorosilicone or Aflas. PTFE and other fluoropolymers on request.
How fast do you return a quote?
Most RFQs come back within one business day. Simple profile updates to an existing tool quote same-day. Send a drawing, DXF, or competing part number and our engineering team reviews material, tolerance, and volume before pricing.
What is the minimum order quantity?
Minimums depend on the part and material. We cut prototype and first-article quantities for engineering evaluation, then scale up to production volumes from the same tooling. For high-volume programs we run JIT, VMI, and Kanban replenishment out of Fontana, California.
What should I send with an RFQ?
Ideal: a drawing or DXF, material spec (or compound family), estimated annual volume, and any regulatory callouts (FDA, USP Class VI, AS9100, MIL-spec). If you only have a sample or a part number from a competing supplier, send that and we will reverse-engineer the spec before quoting.
What are typical lead times?
Prototype and first-article parts usually ship in 5-10 business days. Production runs from existing tooling are 2-3 weeks depending on volume and material lead time. Rush and expedite options available on a case-by-case basis.
Need custom Polyisoprene lathe cut washers?
Precision-machined from extruded tubing to your exact specifications.
